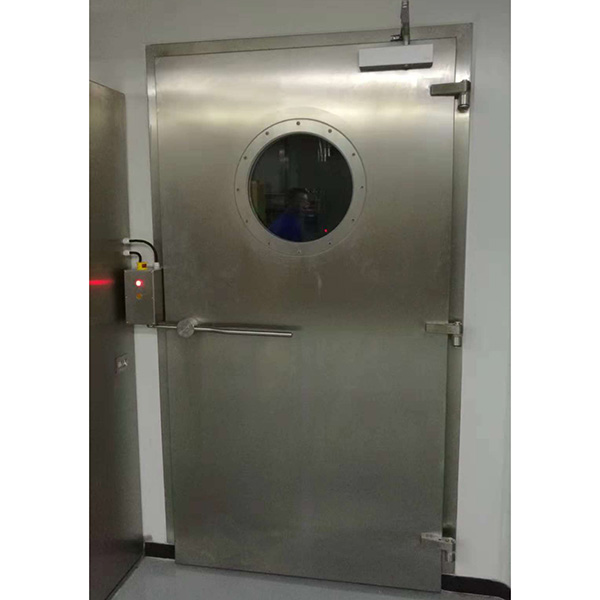

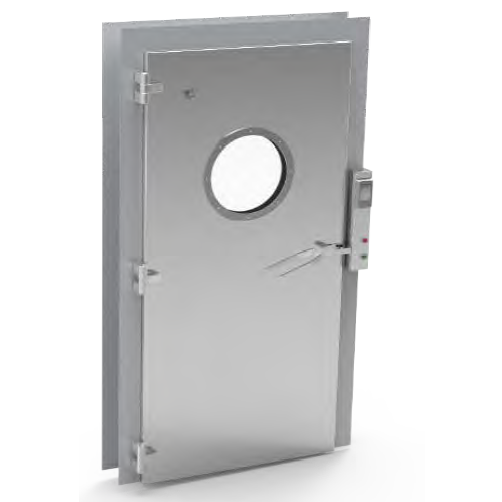

Clean Room Mechanical Seal Doors

Short Description:

Clean Room Mechanical Seal Doors Mechanical Seal Doors for High Containment Facilities Golden Door’s air pressure resistant mechanical seal doors offer high level containment for laboratories and clean rooms. The doors create a reliable airtight barrier with a sturdy, but pliable seal, which is compressed against the doorframe. Mechanical Seal Doors The mechanical seal does not rely on compressed air to form a sealed closure. Therefore, the doors provide effective seals, even power loss. The...


Product Detail

Product Tags

Clean Room Mechanical Seal Doors
Mechanical Seal Doors for High Containment Facilities
Golden Door’s air pressure resistant mechanical seal doors offer high level containment for laboratories and clean rooms. The doors create a reliable airtight barrier with a sturdy, but pliable seal, which is compressed against the doorframe.
Mechanical Seal Doors
The mechanical seal does not rely on compressed air to form a sealed closure. Therefore, the doors provide effective seals, even power loss.
The product features a user-friendly design using a steel arm to press the door into the seal.  The mechanism is fixed onto the doorframe, to avoid adding extra weight to the door itself.  The mechanical seal door requires a raised threshold to form an unbroken seal.  Where a flush threshold is needed, our pneumatic sea doors can be used instead.
Our mechanical seal doors are an effective solution for BSL3 or BSL4 laboratories, and other applications that necessitate a high level of containment.  The raised threshold means that the mechanically sealed doors are best suited to low traffic areas, where wheeled carts are not required.
Mechanical Door Specifications

  • Low maintenance
  • Straightforward design with fail-safe seal
  • Easy to open one-handed.
  • Closing mechanism mounted to the door frame for added strength.
  • Can be fitted with a range of access and control systems.
  • Precision machined solid-core door.
